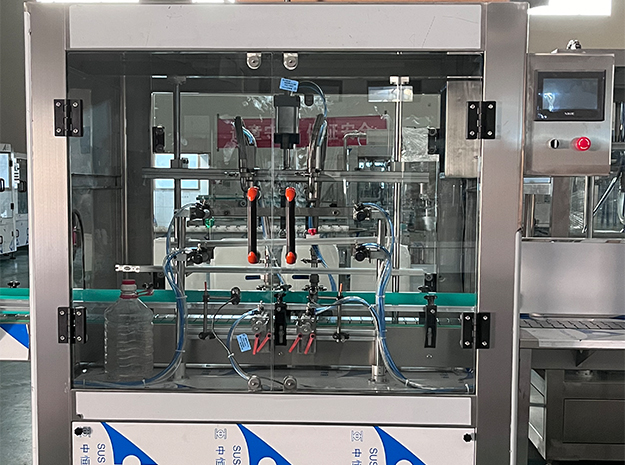

This filling machine is programmable controlled, integrating optics, mechanics, electronics, sensing, and pneumatic actuation. The piston cylinder is driven by a servo motor, ensuring accurate stroke positioning and allowing for both fast and slow filling speeds.

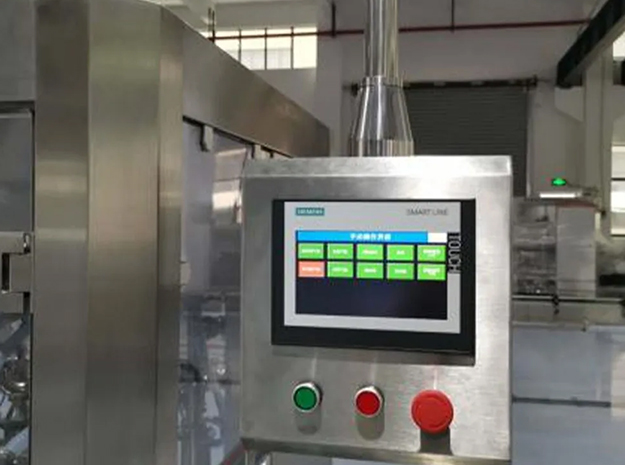

1. Easy adjustment: Filling parameters and a series of settings can be directly adjusted on the touch screen;

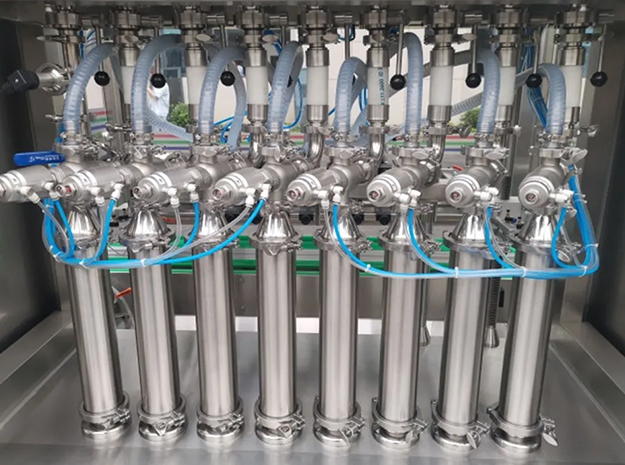

2. The piston cylinder is made of SUS316 material, which is durable and has good corrosion resistance;
3. The servo motor drives the dual lead screw lifting mechanism, making the piston stroke more precise and stabilizing filling accuracy;
4. It adopts an anti-drip filling head, which automatically discharges liquid from the collection tank after filling to avoid material contamination of the bottle.

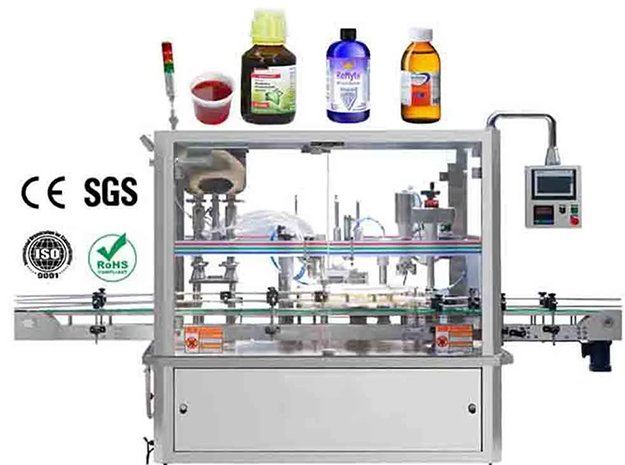

Liquid filling machines are widely used across industries that require precise liquid dispensing, including food and beverages (e.g., mineral water, honey), pharmaceuticals (e.g., oral liquids, injections), daily chemicals (e.g., shampoo, shower gel), chemicals and industrial products (e.g., lubricants, pesticides), and condiments (e.g., ketchup, salad dressing). They handle a broad range of viscosities, from low-viscosity fluids like water to higher-viscosity ones like edible oil, as well as products with particles using specialized equipment. To meet strict hygiene standards in food and pharmaceutical sectors, these machines are often made of 316L stainless steel and comply with GMP regulations, ensuring safe and sanitary production.
| Number of filling heads | 10heads |
| Filling range | 50-500ml |
| Production efficiency | 2500-8000B/H |
| Filling accuracy | ≤±0.5% |
| Applicable bottle size | Φ35~100mm，（H）50~300mm(Customization available outside the scope |
| working air pressure | 0.6-0.8Mpa |
| Gas consumption | 200L/min |
| Power supply | AC380V 50HZ 2.5KW |
| Equipment size | 1800×1400×2300mm |
| Equipment weight | 1200kg |
