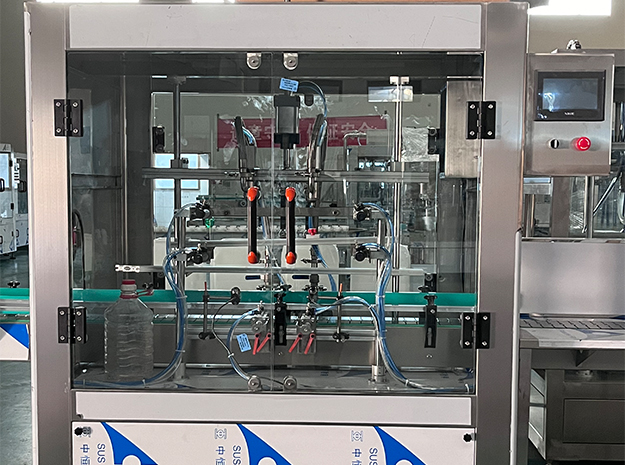

The machine boasts a high degree of automation, is easy to adjust, and is suitable for filling various viscous materials in the vegetable oil, jam, honey, syrup, pharmaceutical preparations, suspensions, and daily chemical industries.

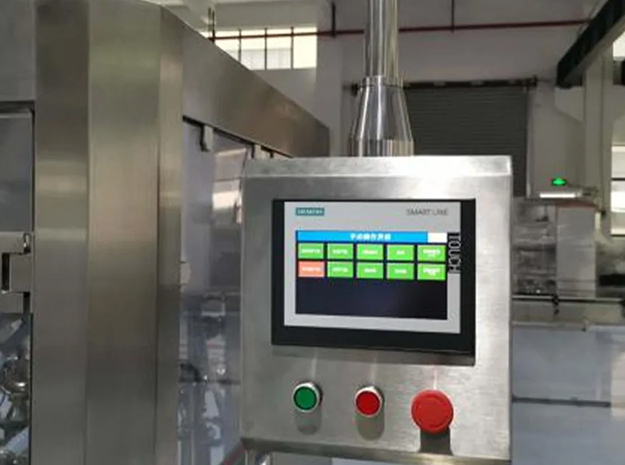

1. Easy adjustment: Filling parameters and a series of settings can be directly adjusted on the touch screen;
2. The piston cylinder is made of SUS316 material, which is durable and has good corrosion resistance;
3. The servo motor drives the dual lead screw lifting mechanism, making the piston stroke more precise and stabilizing filling accuracy;

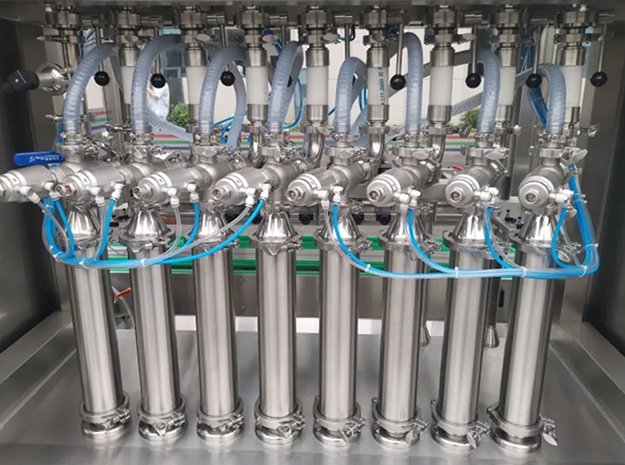

4. It adopts an anti-drip filling head, which automatically discharges liquid from the collection tank after filling to avoid material contamination of the bottle.
The machine boasts a high degree of automation, is easy to adjust, and is suitable for filling various viscous materials in the vegetable oil, jam, honey, syrup, pharmaceutical preparations, suspensions, and daily chemical industries.
Number of filling heads | 10heads |
Filling range | 50-500ml |
Production efficiency | 3000-5000B/H |
Filling accuracy | ≤±0.5% |
Applicable bottle size | Φ35~100mm，（H）50~300mm(Customization available outside the scope） |
working air pressure | 0.6-0.8Mpa |
Gas consumption | 200L/min |
Power supply | AC380V 50HZ，2.5KW |
Equipment size | 1800mm×1400mm×2300mm |
Equipment weight | 1200kg |
