In the daily chemical industry, shampoo and shower gel are among the largest and most competitive product categories. Consumers have increasingly higher demands for product quality, such as viscosity, fragrance, and foaming ability. However, for manufacturers, the challenges in the filling process extend far beyond filling itself. How to improve efficiency, reduce waste, and quickly changeover while ensuring filling accuracy is a real problem facing every daily chemical manufacturer.
Shampoo, shower gel, and other daily chemical products share common characteristics: high viscosity, poor flowability, and a tendency to foam. These characteristics present three typical challenges for filling. First, "difficulty in filling": high-viscosity materials have high flow resistance, and ordinary pneumatic filling machines lack sufficient thrust, resulting in slow filling speeds and even "flow interruptions" or "material blockages." Second, "inaccurate filling": high-viscosity materials are easily affected by temperature; viscosity is higher in winter and thinner in summer. If the equipment cannot automatically adapt to this change, the filling volume will fluctuate, with some bottles of the same batch containing more than others. Thirdly, there's the issue of "stringing and dripping." Shampoo, shower gel, and similar products often leave residue at the filling nozzle after filling, creating "tails" or drips that contaminate the bottle opening and conveyor belt, affecting product appearance and increasing subsequent cleaning costs.
Given these characteristics of daily chemical products, the selection of filling equipment requires careful consideration of several aspects. Regarding filling methods, piston filling machines are currently the most mature and widely used choice in the daily chemical industry. They use the reciprocating motion of a piston to quantitatively dispense the material, unaffected by changes in material viscosity, offering high filling accuracy and suitability for high-viscosity pastes. For shower gels with better flowability, flow meter filling machines can be chosen for even faster speeds. In terms of the power system, for products with particularly high viscosity, such as shampoos and conditioners, hydraulic filling machines are recommended. Compared to pneumatic systems, hydraulic systems provide continuous and stable high-pressure output, maintaining a uniform filling speed even for materials as thick as toothpaste. More importantly, hydraulic systems can automatically adjust pressure according to the load, ensuring stable filling volume even when material viscosity fluctuates due to temperature changes. Regarding filling valves, one of the most troublesome issues in daily chemical product filling is dripping and stringing. Back-suction filling valves can draw back any remaining material from the filling nozzle after filling, effectively preventing dripping and stringing, keeping the bottle mouth clean, eliminating the need for subsequent wiping, and reducing packaging material waste.

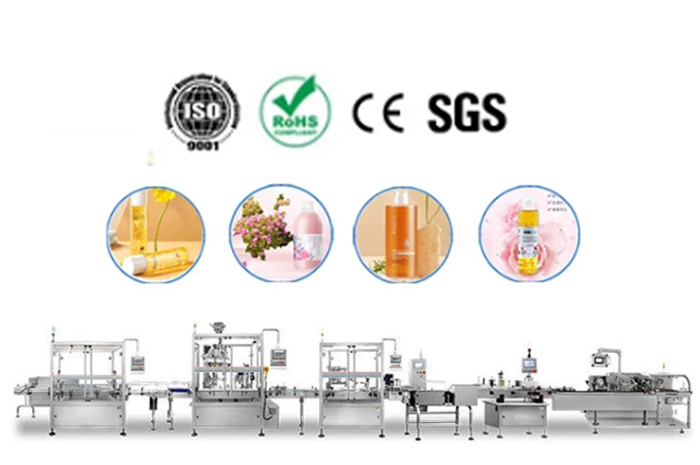

An efficient daily chemical filling production line is not just about the filling machine itself, but the coordinated operation of the entire line. Taking a shampoo production line as an example, a typical configuration includes an automatic bottle unscrambler, which arranges empty bottles in a uniform direction and feeds them onto the conveyor belt, reducing manual bottle loading; a servo filling machine, a 6- or 8-head piston filling machine, with a daily output of 20,000 to 50,000 bottles and precise controllable filling volume; an automatic capping machine equipped with torque control to ensure consistent tightening force for each cap, preventing over-tightening or over-loosening; a labeling machine, capable of double-sided or wrap-around labeling, selected according to bottle type; and an inkjet printer, which prints the production date and batch number on the bottle body or bottom. Each stage is centrally controlled by a PLC, enabling one-button start/stop and automatic speed matching, significantly reducing manual intervention and ensuring both production efficiency and product consistency.
Let's look at a real-world example. A daily chemical company previously used semi-automatic filling equipment to produce shower gel, with a daily output of approximately 10,000 bottles, requiring six workers. Filling accuracy was inconsistent, with about 3% of each batch needing rework. Dripping and stringing were also serious problems, requiring two additional workers to wipe the bottle necks. After introducing a fully automated daily chemical filling production line, the situation changed dramatically: only two operators were needed for monitoring and replenishing materials, and daily output increased to 30,000 bottles; the back-suction filling valve completely solved the dripping problem, eliminating the need for a separate bottle wiping process; filling accuracy stabilized within ±0.5%, and the rework rate dropped below 0.5%. The entire production line recouped its investment in approximately 18 months.
The key to filling daily chemical products such as shampoo and shower gel lies not in how advanced a single piece of equipment is, but in whether the entire line can accurately match the characteristics of the materials. Choosing the right filling method, power system, and filling valves, along with a well-designed overall production line solution, is crucial for achieving efficient, stable, and low-loss production. If you are planning a daily chemical filling production line, please contact us. We can provide customized complete line solutions based on your product characteristics, production capacity targets, and bottle type requirements.
