In pesticide formulation production, the filling and packaging of the finished liquid product is a crucial step in determining the final delivery quality. However, pesticide liquids generally possess strong corrosiveness and high toxicity, placing extremely stringent requirements on production equipment. The "Pesticide Production Line – Corrosion-Resistant Liquid Finished Product Production Line" is a specialized complete solution designed to address this industry pain point. From material selection and structural design to intelligent control, it comprehensively constructs a safe, reliable, and efficient production defense line.
The construction of this protective system begins with a revolution in materials. The corrosiveness of finished pesticide liquids is mainly reflected in their chemical composition. Herbicides, represented by glyphosate, and various fungicides and insecticides often contain strong acids, strong alkalis, or fluorine-containing compounds in their liquid formulations, exhibiting extremely strong corrosive effects on ordinary metal materials. With the increasing proportion of fluorine-containing agrochemicals, equipment corrosion problems have become increasingly prominent, leading the industry to adopt highly corrosion-resistant nickel-based alloys such as Hastelloy to manufacture core process equipment. In finished liquid filling production lines, this concept is implemented in every component that comes into contact with the material. Professional corrosion-resistant filling production lines not only use enamel-lined materials for the cylinder and filling nozzle inner walls, but also widely apply corrosion-resistant solutions such as 316L stainless steel, PTFE-lined steel, and titanium. The filling nozzles use silicone tubing or Hastelloy alloy, which can withstand the corrosion of the liquid and prevent dripping and contamination of the bottle during filling. Practice shows that equipment using advanced corrosion-resistant materials such as Hastelloy alloy can have a service life more than three times longer than ordinary stainless steel equipment.

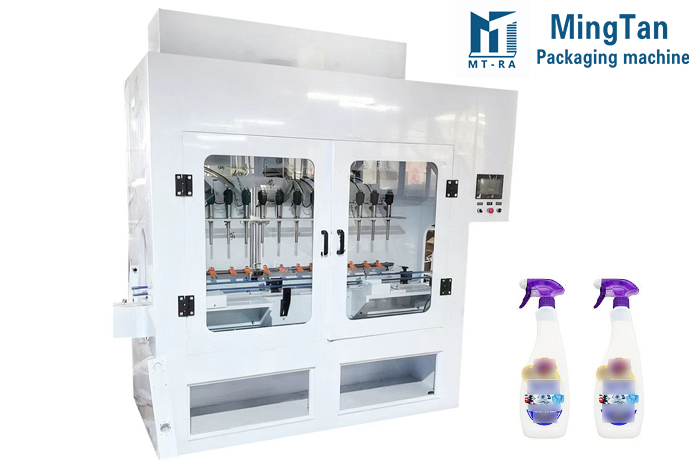

However, corrosion-resistant materials alone are far from sufficient; the structural design of the production line is equally crucial. The design of finished liquid corrosion-resistant production lines follows the principle of "fully enclosed, zero leakage." The entire production line typically uses fully corrosion-resistant PLC program control, combined with photoelectric sensing and pneumatic actuator technology, to achieve automated operation. The filling head is designed with a submersible filling function—it extends into the bottle mouth during filling and withdraws after completion, preventing liquid splashing that could corrode equipment or waste materials. It is also equipped with an anti-drip device to ensure no residual liquid drips after filling, preventing corrosive liquids from damaging the conveyor belt or contaminating the bottle. Regarding the core power unit, the production line uses corrosion-resistant power units such as diaphragm pumps for automatic material replenishment. All pipes, valves, and pump bodies through which materials flow are treated with anti-corrosion coatings. For the electrical system, for flammable and explosive pesticide products, an ATEX explosion-proof chamber can be configured to provide overvoltage protection for electronic and electrical components, and anti-static conveying equipment is used to ensure comprehensive production safety.
Building on its robustness and precision, the finished liquid corrosion-resistant production line also prioritizes intelligence and efficiency. Relying on a PLC touch control system, operators can easily set the filling volume, adjust the production speed, and monitor the filling status in real time. The system features intelligent functions such as no-bottle-no-fill and automatic counting, eliminating empty bottle waste. The filling accuracy can be controlled within ±1% or even ±0.3%, ensuring accurate dosage for each bottle while avoiding economic losses due to overfilling, truly achieving a dual guarantee of precision and efficiency.
In summary, the "Pesticide Production Line - Finished Liquid Corrosion-Resistant Production Line" is not just a set of production equipment, but a systematic solution that deeply integrates materials science, automation technology, and safety engineering. Through precise material selection, rigorous structural design, and intelligent process control, it effectively addresses the corrosive challenges of finished pesticide liquids. While ensuring operator safety and extending equipment lifespan, it achieves high-quality, high-efficiency filling of pesticide formulations, serving as a solid foundation for agrochemical production enterprises to achieve clean production, compliant operation, and cost reduction and efficiency improvement.
Henan Mingtan is a manufacturer specializing in the production and sales of packaging machinery and equipment. If you have any needs, please tell me your requirements, and I will provide you with a quote based on them.
